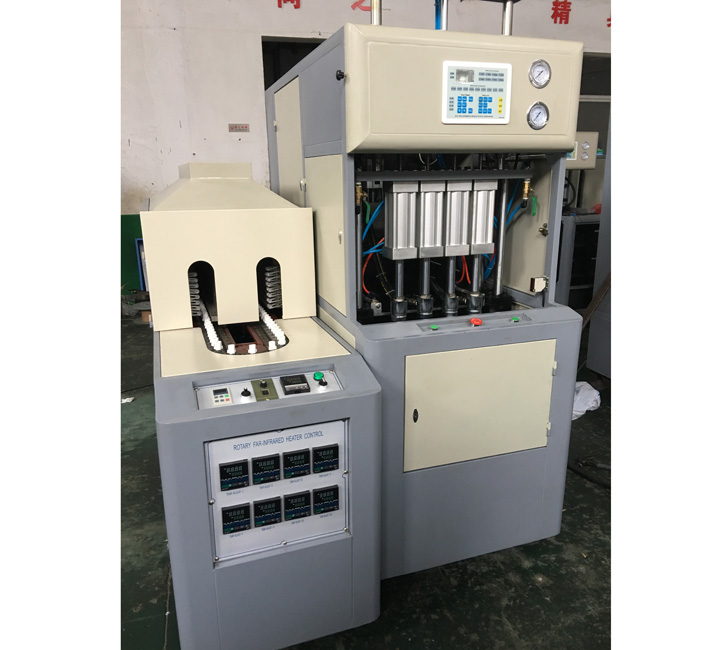

 4Cavity Semi-automatic Blow Molding Machine
Product parameters

4Cavity Semi-automatic Blow Molding Machine
main advantage of 4cav semi-automatic blow molding machine is this machine can achieve double output production capacity than 2cavity blow molding machine, by just one workers,
This blowing machine is best suitable for small scale production and beginner; the preforms manually put onto preform holder and heated in infrared oven, then the heated preforms manually put into blow mould to stretch blowing into bottles
Technical Specification

MODEL  Unit ZSB-4-2200
Products                        Preform material    PET
Max.volume  L 2
Theoretical production capacity BPH 2200
Max.neck diameter                             mm 38
Max.bottle height                mm 360
Max.bottle diameter          mm 120
Molding unit         Clamping force Kn 180
Max.mould plate dimension(L*H)                 mm 420*640
Mould opening stroke          mm 200
Max.Mould stretching stroke   mm 400
Max.Mould thickness               mm 240
Number of cavity cavity 4
Electricity          Total power consumption         Kw 12
Voltage/frequency             v/hz 380v  220v 3phase /50hz 60hz
Compressed Air system          Operation pressure        Kg 0.8-1.2
Blowing pressure               kg 30
High pressure Air consuming M3 /min 2.4
Air Cooling dryer M3 /min 2.0
Air filter M3 /min 2.0
Air tank L 600
Chilled water  Water chiller(optional)         recyling cooled water 20degree
Machine size and weight  Blower dimension(L*W*H)     m 1.85*1.05*1.8
Blower weight  Kg 1100
Heater dimension             m 1.65*1.05*1.35
Heater weight Kg 800
